Malmbergs Electric Car Charging Station, Type 2, 1-phase, 16A

This stylish Malmbergs charging station provides efficient and safe 1-phase, 16A charging for electric cars at home, featuring a Type 2 connector and a built-in electricity consumption meter.

The Malmbergs Electric Car Charging Station is designed for convenient and reliable home charging. It features a built-in meter for precise monitoring of electricity consumption, allowing users to track their energy usage effectively. For enhanced safety, it includes Type A residual current protection with a 6mA DC tripping current, which serves as an equivalent to Type B residual current protection.

Equipped with clear charging indicators on the front panel, the station provides immediate visual feedback on the charging status. A user-friendly button on the side allows for easy selection of the charging current, offering options of 6, 8, 10, 13, or 16A to suit various needs and vehicle specifications.

Designed for fixed installation, this versatile charging station can also be configured with a CEE 2-216 plug for portability, making it ideal for use at different locations such as a summer cottage. An additional wall mount kit, charging connector hanger, and cable holder are available separately to customize the setup.

The integrated LCD display provides comprehensive information, including the current charging rate and the total electrical energy consumed. It comes with a generous 6-meter charging cable featuring a Type 2 connector, ensuring ample reach and compatibility with most electric vehicles.

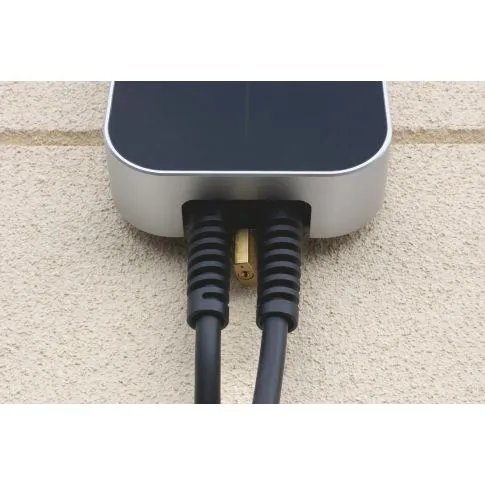

For secure installation, the unit includes a padlock-ready wall mount for quick and safe attachment. A dedicated cable holder and a hanging hook for the charging connector help keep the charging area tidy. The station is supplied with a 2-meter H07RN-F connection cable for robust power supply.

Built with an ABS + PC alloy enclosure, the charging station is durable and rated IP54 for protection against dust and splashing water. It operates at a rated voltage of 230V AC ±10% and is designed to function reliably in temperatures ranging from -40°C to +55°C. Comprehensive security features include over current, under voltage, over voltage, over temperature, and earth protection with A+DC 6mA, along with charge status detection.

• Cable Length: 6 m


• Max Power: 3.7 kW


• Dimensions (WxHxD): 195x295x70 mm


• Rated Current: 16A


• Structure: 1-phase


• Protection Class: IP54


• Built-in Meter: For electricity consumption monitoring


• Residual Current Protection: Type A with 6mA DC tripping current


• Selectable Charging Current: 6, 8, 10, 13, or 16A


• Charging Cable Type: Type 2


• Connection Cable: 2m (H07RN-F)


• Wall Mount: Lockable (padlock-ready)


• LCD Display: Indicates charging current and consumed energy


• Enclosure Material: ABS + PC alloy


• Rated Voltage: 230V AC ±10%


• Operating Temperature: -40°C – +55°C


• Security Protection: Over current, Under voltage, Over voltage, Over temperature, Earth protection A+DC 6mA, Charge status detection
