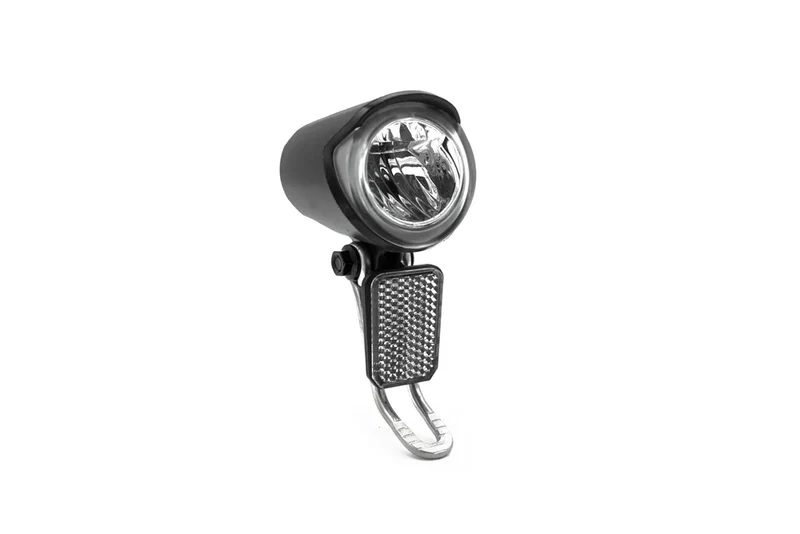

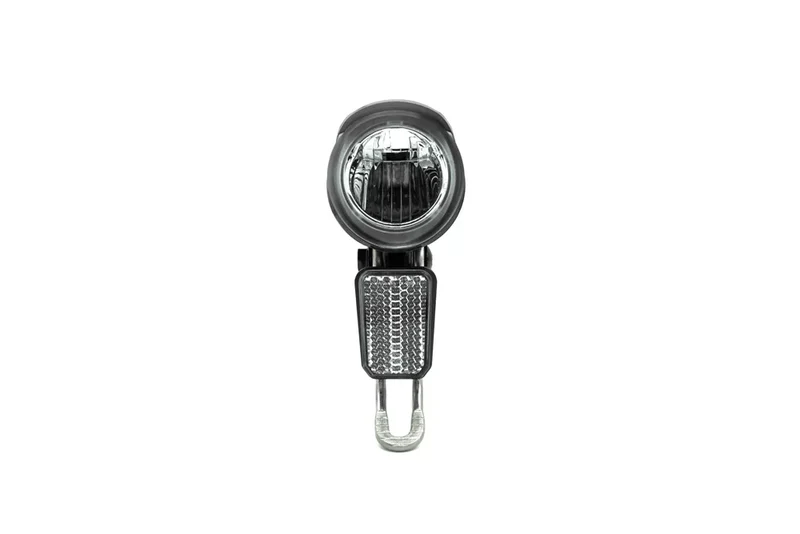

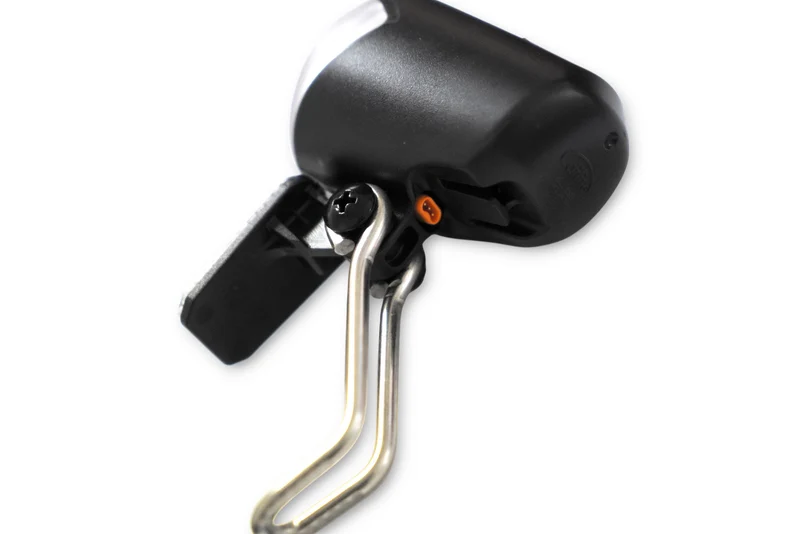

Front Headlight with Mounting Bracket for Joyor S-PRO Electric Scooter
Beskrivning
DH004 Front Headlight with Mounting Bracket
Original Joyor DH004 front headlight designed for the Joyor S-PRO electric scooter. Manufactured to OEM specifications, this high-brightness LED headlight restores the original lighting performance while providing excellent visibility and improved riding safety.
The DH004 headlight operates on 36V–48V DC systems and comes complete with the DF004 reflector, DZ01 front mounting bracket and a pre-installed SM-3A connector for quick and direct installation.
The assembly features a 700 mm exposed cable with the original Joyor Y-S Series wiring configuration, ensuring full compatibility with the factory electrical system.
Compatibility
- Joyor S-PRO
Technical Specifications
- Model: DH004
- Type: Front Headlight
- Operating Voltage: 36V–48V DC
- Integrated Horn: No
- Reflector: DF004 Included
- Mounting Bracket: DZ01 Included (Standard Orientation)
- Cable Length: 700 mm
- Connector: SM-3A (Pre-installed)
- Wiring Configuration (Y-S Series): Pin 1 Empty / Pin 2 Red (+) / Pin 3 Black (−)
Replace a damaged or worn front headlight to restore the original lighting performance and safety of your Joyor S-PRO electric scooter.
Original Joyor replacement part with fast shipping throughout the European Union.
