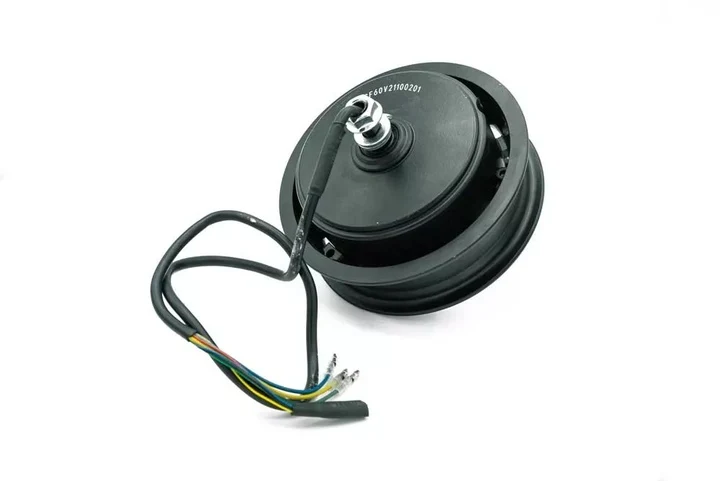

10-Inch Integrated Rear Hub Motor 48V for Joyor S-PRO

Original Joyor integrated rear hub motor designed specifically for the Joyor S-PRO electric scooter. Manufactured to OEM specifications, this 48V 500W motor provides smooth acceleration, reliable torque and factory-level compatibility for direct replacement.

Compatibility

• Joyor S-PRO

Technical Specifications

• Type: Integrated Rear Hub Motor
• Compatibility: Joyor S-PRO
• Wheel Size: 10 Inch
• Voltage: 48V
• Rated Power: 500W
• Motor Specification: 35H38M
• Speed: 930 RPM
• Dropout Width: 108 mm
• Axle Length: 163 mm (output side extended by 3 mm)
• Cable Exit: Right Side, Straight
• Cable Length: 900 mm
• Hall Connector: Pre-connected
• Phase Connectors: 6 mm Male Bullet Connectors
• Disc Brake Mount: Left Side, 6-Bolt
• Disc Brake Surface Height: 18 mm
• Phase Wire Size: 2.5 mm²
• Included Accessories:
• 2 × Flat Washers
• 2 × 2 mm Anti-Rotation Hook Washers
• 3 mm round washer removed on cable exit side (updated design)

Restore the original power, efficiency and riding performance of your Joyor S-PRO with this genuine integrated rear hub motor.

Original Joyor replacement part with fast shipping throughout the European Union.
